XTDIC-CONST Series

3D full-field strain measurement system

Watch Video
3D DIC, 3D full-field strain measurement, DIC digital speckle pattern, DIC technology, binocular DIC measurement, DIC non-contact strain measurement, DIC full-field deformation measurement, 3D full-field strain measurement, XTOP3D
Watch Video
Provides non-contact full-field three-dimensional strain and displacement measurement for testers
The XTDIC-CONST non-contact full-field strain measurement system supports two-dimensional flat and three-dimensional deformation measurement of curved surfaces. It is suitable for full-field strain and point-based analysis under static and dynamic loads. The 3D DIC system has a variable measurement field of view and is compatible with cameras of different speeds. It provides flexible and diverse testing tasks, helping universities and research institutions to conduct testing and transform scientific research results.
Technical characteristics

Technical characteristics

• DIC technology offers a measurement field of view of 10mm to 10m, with customizable larger fields of view.
• DIC strain measurement system with an accuracy of 20με and a range of 0.005% to 2000%.
• Maximum full-frame frame rate of 563, and up to 2000 frames (windowed).
• 2D and 3D coordinate, displacement, deformation, and strain measurements.
• Velocity, acceleration, and 6-DOF trajectory and attitude measurements.
• Elastic modulus, Poisson's ratio, n-value, r-value, and yield strength measurements.
• CTE measurement and deviation comparison with CAD/FEM.
• Probes and adapters (optional).
• 2000°C temperature field coupling (optional).
• Multi-camera DIC and multi-probe stereo measurement.
• Multi-media environment measurements (high and low temperature, underwater, mirror, and vacuum).
• ±10V/UDP/COM online testing machine and temperature chamber.

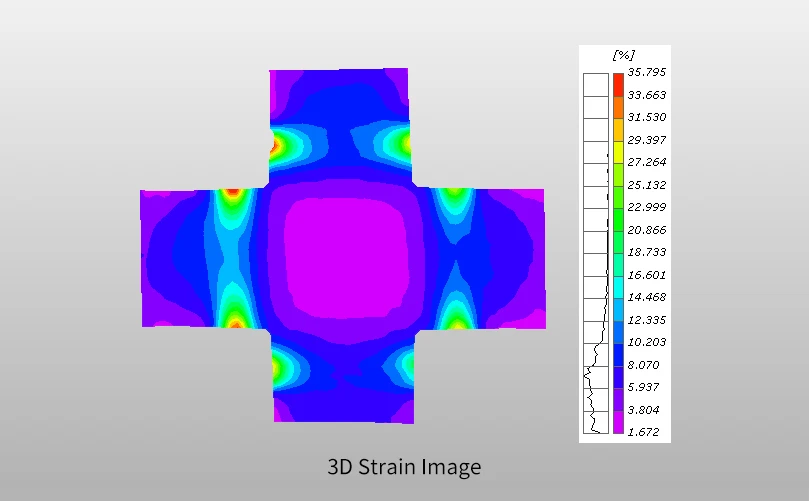

Intelligent software

XTDIC software directly controls the DIC strain measurement system's measuring head and controller to complete various testing tasks. The DIC software automatically calculates test data and provides powerful post-processing and report generation capabilities.

*Full-field displacement and strain measurement based on speckle matching;
*Motion trajectory and posture measurement based on marker detection;
*Static deformation measurement based on photogrammetry;
*Keypoint motion trajectory measurement based on feature matching.
Learn More >
Intelligent software
Typical Configuration
Model
 		XTDIC-CONST-SD XTDIC-CONST-HR XTDIC-CONST-HS
Specification 5M 12M 25M 4M 25M
Camera resolution 5 megapixels x2 12 megapixels x2 25 megapixels x2 4 megapixels x2 25 megapixels x2
Camera frame rate 75 fps 30fps 15fps 563 fps 90 fps
Strain measurement accuracy 20με @2D，50με @3D 20με@2D、3D 50με@2D、3D
Strain measurement range 0.005%~2000% 0.01%~2000%
Measuring field of view
400*300mm、200*150mm、128*96mm、64*48mm
Optional (supports more fields of view)
1000*1000mm、400*300mm、200*150mm、128*96mm
Optional (supports more fields of view)
1000*1000mm、400*300mm、200*150mm、128*96mm
Optional (supports more fields of view)
Industry Applications
The XTDIC-CONST non-contact full-field strain measurement system has become an ideal tool for measuring the three-dimensional full-field deformation, strain, and displacement of materials and parts due to its excellent system stability, environmental adaptability, functional scalability, precision reliability, and extremely high computational efficiency.
Learn More >
  • +Material Testing
  • +Real-time measurement and analysis of parts
  • +Multi-media environmental measurement
  • +Multi-head stereo measurement
  • +Simulation results verification
    • Customer Cases
    More Cases >
