XTDIC-STROBE Series

3D dynamic measurement system

Watch Video
3D motion measurement, 3D dynamic measurement, dynamic trajectory tracking, full-field 3D displacement measurement
Watch Video
Non-contact full-field 3D coordinate, displacement and deformation measurement
The XTDIC-STROBE 3D dynamic measurement system, based on stereo vision and image feature recognition technology, can measure deformation, displacement, and trajectory at varying speeds. It also outputs key velocity and acceleration data for motion analysis. With its robust structure, stable process, and simple operation, the XTDIC-STROBE is widely used in industry and scientific research.
Technical characteristics

Technical characteristics

• Up to 4500 fps @ 300,000
• Tracking accuracy of 0.005 px
• Simultaneous tracking of numerous targets
• Real-time tracking measurement and data output, up to 1000 fps
• 3D coordinate, displacement, and deformation measurement, velocity and acceleration measurement, and 6-DOF trajectory and attitude measurement

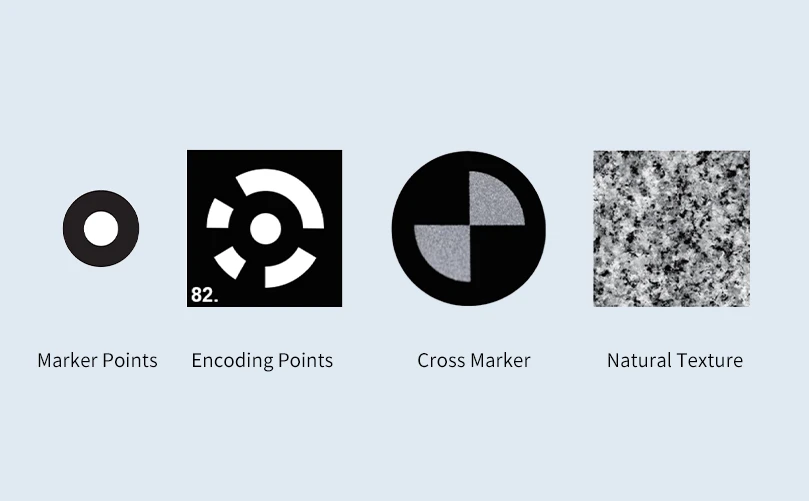

• Feature tracking and matching algorithms support arbitrary patterns (markers, encoders, crosshairs, etc.)
• Manual, semi-automatic, and fully automatic tracking
• XY/XT/multi-axis multi-window charts and 3D trajectory display
• Rugged construction for fast on-site measurement tasks
• μs-level high-speed synchronous light source and reflective point technology (reflective point + coaxial light)
• Extremely fast acquisition technology, multiple synchronous acquisition technologies
• Phase-locked loop technology, particularly suitable for circular motion tracking, capable of tracking subsonic targets

Intelligent software

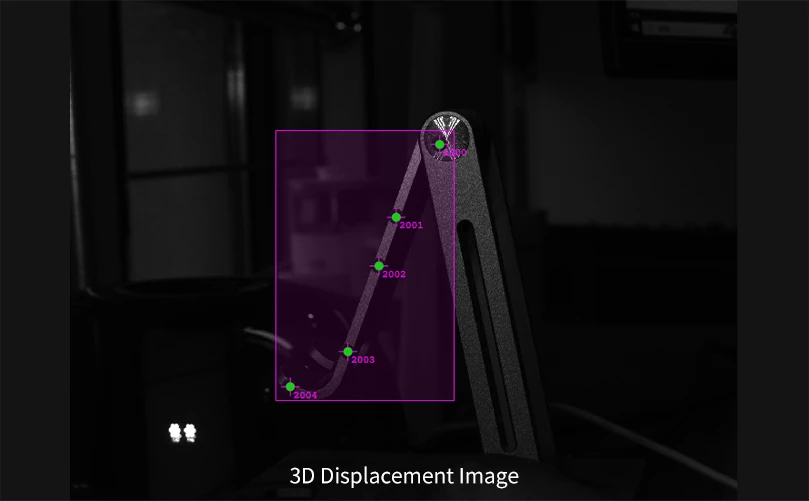

XTDA software allows for convenient and intuitive measurement of 3D displacement and deformation, as well as velocity and acceleration. Point-based measurement data enables comprehensive 6-degree-of-freedom (DoF) analysis.
• Motion measurement and analysis based on markers and feature points;
• Motion parameter analysis and 6-DOF trajectory and posture measurement;
• High-speed, real-time, multi-modal tracking calculations.
Learn More >
Intelligent software
Typical Configuration
Model XTDIC-STROBE-SD XTDIC-STROBE-HR XTDIC-STROBE-HS
Specification 5M 12M 4M 2.5M
Camera resolution 5 megapixels x2 12 megapixels x2 4 megapixels x2 2.5 megapixels x2
Camera frame rate 75 fps 30 fps 563 fps 600 fps
Displacement measurement accuracy 0.005px
Measuring field of view 100mm~10m, optional (supports wider field of view)
Real-time tracking ≥100fps@100 points, up to 1000fps
Industry Applications
The XTDIC-STROBE 3D dynamic measurement system enables 3D deformation measurement, displacement tracking, trajectory measurement, and key point velocity and acceleration data tracking of specimens or parts under loading at different speeds. It is suitable for wind tunnel model motion posture measurement, door closing tests, and dynamic deformation of wind turbine blades.
Learn More >
  • +Wind tunnel multi-probe open rotor testing
  • +Dynamic testing
  • +Human motion tracking
  • +Civil engineering, earthquake simulation
  • +Wind turbine blades, rail vehicle detection, bridge monitoring
